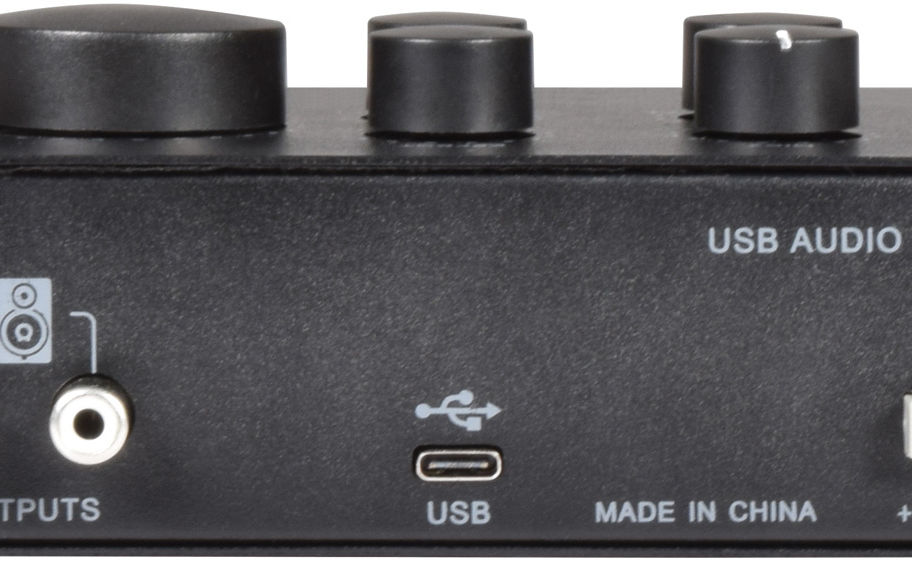

Desktop USB soundcard for a computer-based recording studio. Featuring 2 independent microphone inputs on XLR/jack sockets and a separate 6.3mm instrument input. Each input has a gain control and there is an optional echo effect with separate control. Monitoring is via a stereo 6.3mm headphone jack or L+R RCA line output on the rear of the unit for connecting monitor speakers. Power to the interface and two-way digital audio is connected via a USB type-C socket at the rear. Simple yet versatile operation for project studios and DAW recording setups.

• 2 XLR/jack microphone inputs with gain and mute control

• Separate instrument 6.3mm jack input

• 48kHz sample rate

• Inbuilt echo effect

• 1.5m USB type C to A lead supplied

• ControlsMic1, Mic2, Inst3, Effect, Monitor

• ConnectionUSB type-C

• Power supply5Vdc (from USB)

• Input connections2 x mic XLR/Jack, 1 x 6.3mm instrument jack

• Phantom power+48V switchable to XLR inputs

• Frequency response10Hz - 30kHz (-0.5dB)

• Input impedance : instrument1M Ohm

• Input impedance : mic3k Ohm

• Max. input sound levelMic or Instrument +2dBu, Line +22dBu

• Dynamic range100dB (A-weighted)

• Sampling format48kHz, 16-bit

• Monitor outputsHeadphones (stereo 6.3mm jack), Line out (L+R RCA)

• Dimensions160 x 110 x 57mm

• Weight529g
